■ 基本信息
復制子: | ColE1 Ori |
質粒分類: | 枯草桿菌質粒；枯草整合質粒；枯草分泌質粒 |
質粒大小: | 8965bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
■ 質粒屬性
質粒宿主: | 枯草桿菌 |
質粒用途: | 蛋白表達 |
片段類型: | ORF |
片段物種: |
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pIEFBPR質粒是一個枯草整合型分泌載體，該質粒的參考文獻：mazF, a novel counter-selectable marker for unmarked chromosomal manipulation in Bacillus subtilis
ColE1 ori, ColE1 replication origin; amp, ampicillin-resistance marker; spc, spectinomycin-resistance marker; lacI, lac-repressor-encoding gene; Pspac, Pspac promoter; mazF, E.coli toxin gene; Plpp, promoter of E.coli lpp gene; mazE, E.coli antitoxin gene; DR, directly-repeated sequence; amyE-front and amyE-back, upstream and downstream sequences of the B.subtilis amyE gene, respectively; bpr-front and bpr-back, upstream and downstream sequences of the B.subtilis bpr gene, respectively. All of the DNA sequences located between the amyE-front and amyE-back or the bpr-front and bpr-back allow integration into the chromosome of B.subtilis via a double-crossover event, resulting in selection for spectinomycin-resistance. The unique restriction enzyme sites are highlighted in blue.

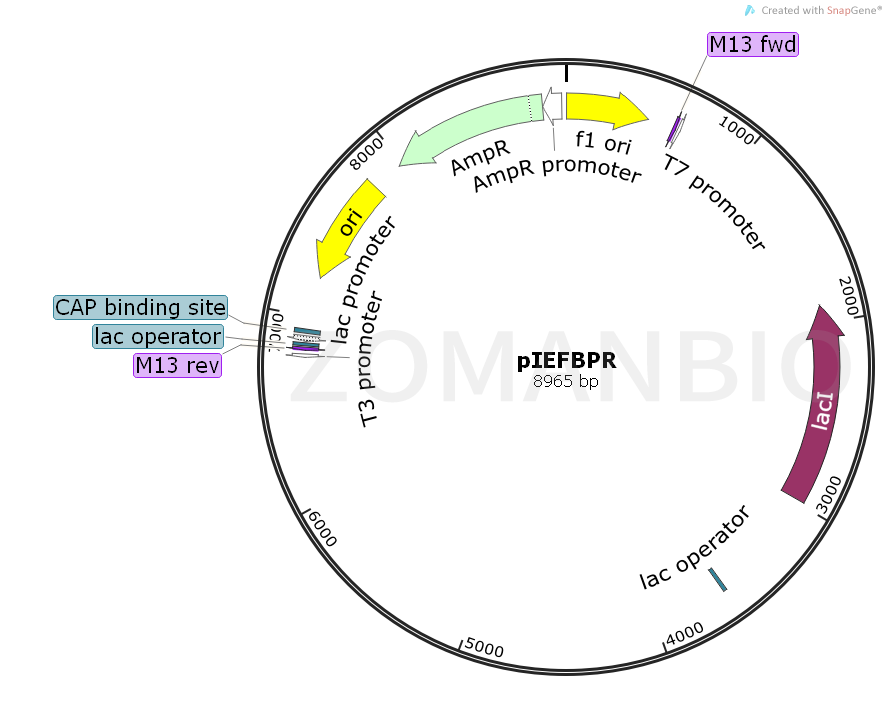

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK1030pIEFBPR枯草分泌質粒.txt
質粒只保證關鍵序列正確，不保證表達效果。
