■ 基本信息
啟動子: | CYC1 promoter |
復制子: | pUC ori，F(xiàn)1 ori，2μ ori |
終止子: | CYC1 terminator |
質粒分類: | 酵母細胞質粒；酵母雜交質粒；雙雜交類質粒 |
質粒大小: | 6200bp |
質粒標簽: | N-NubG；N-HA |
原核抗性: | Amp |
真核抗性: | TRP1 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 酵母菌 |
培養條件: | 30℃，YPD，有氧 |
5'測序引物: | CYC1-F：CTTTCCTTATACATTAGGACC |
3'測序引物:
| CYC1-R：GGGACCTAGACTTCAGGTTG |
備注: | 高拷貝質粒 |
■ 質粒屬性
質粒宿主: | 酵母菌 |
質粒用途: | 雜交 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: | TRP1
|
熒光標記: |
|
■ 質粒簡介
pPR3-N是一個用于膜蛋白酵母雙雜交實驗的質粒。The DUALmembrane system is intended for the detection and identification of interactions involving integral membrane proteins and membrane-associated proteins in yeast. The DUALmembrane pairwise interaction kit enables you to:
Investigate the interaction between a membrane protein (integral or membrane-associated) and a membrane protein or soluble protein
Map domains or amino acids which are critical for an interaction
Screen cDNA libraries using a membrane protein as a bait to find novel
interacting proteins (requires purchase of a separate cDNA library from Dualsystems)

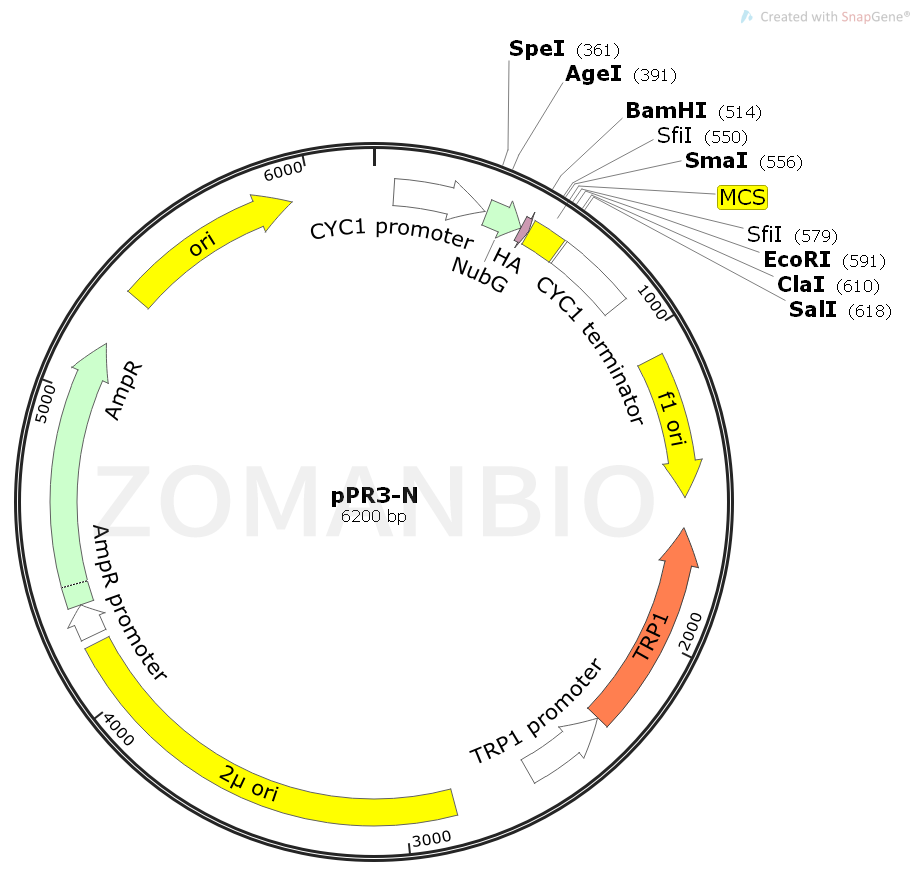

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK987pPR3-N膜蛋白雙雜交質粒.txt
