■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal，beta-globin polyA signal |
質粒分類: | 哺乳細胞，四環素調控系統載體 |
質粒大小: | 7400bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 四環素誘導 |
5'測序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pTet-On? expresses the reverse tet-responsive transcriptional activator (rtTA) from the strong immediate early promoter of cytomegalovirus (PCMV). tTA is a fusion of amino acids 1–207 of the tet repressor (TetR) and the negatively charged C-terminal activation domain (130 amino acids) of the VP16 protein of herpes simplex virus. pTet-On is similar to pTet-Off except for four amino acid changes that convert the TetR to a rTetR, and consequently, tTA to rtTA. (pTet-Off also contains several silent mutations.) pTet-On was originally described as pUHD17-1neo by Gossen et al. (1995). pTet-On can be distinguished from pTet-Off by digestion with Hind III.

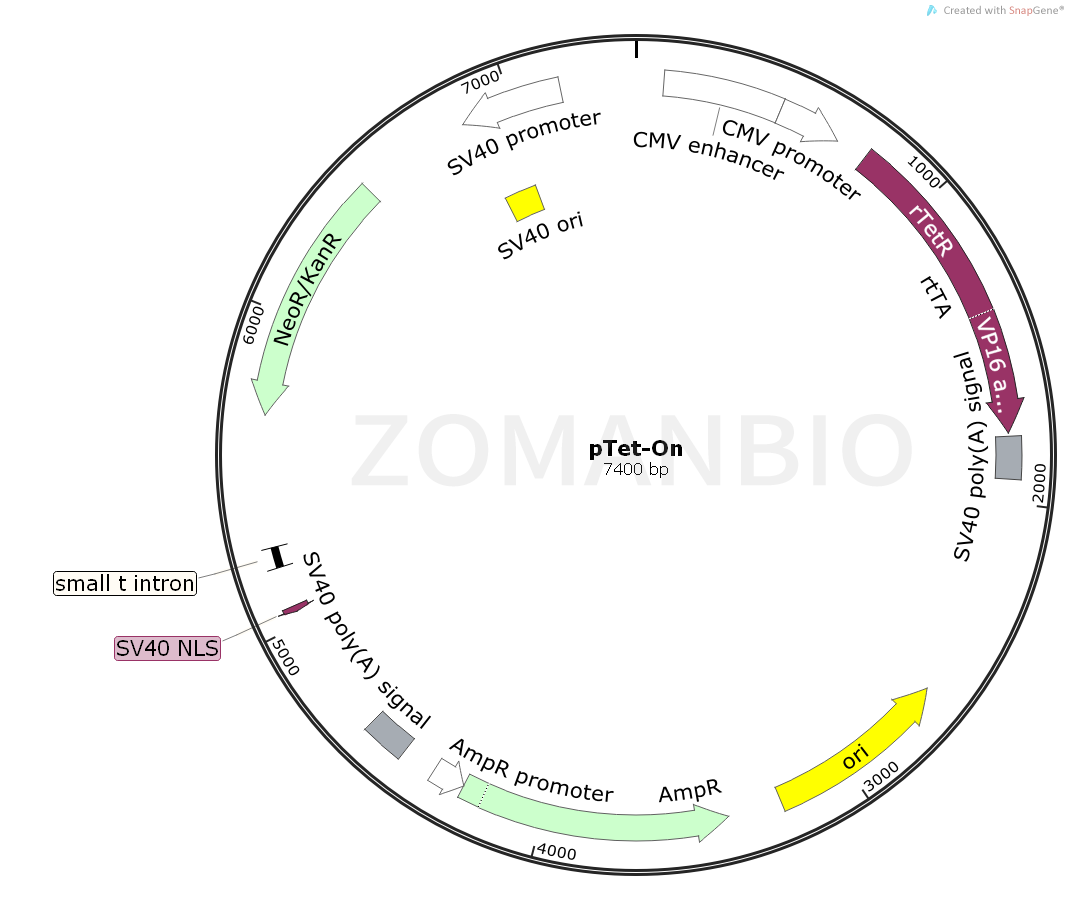

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK694pTet-On哺乳調控質粒.txt
