■ 基本信息
啟動子: | T7 |
復制子: | ColA |
終止子: | T7 terminator |
質粒分類: | 大腸桿菌載體；雙表達框質粒 |
質粒大小: | 3719bp |
質粒標簽: | N-6×His,C-S |
原核抗性: | Kan |
克隆菌株: | DH5a |
培養條件: | 37℃，有氧，LB |
表達宿主: | BL21(DE3) |
誘導方式: | IPTG或乳糖及其類似物 |
5'測序引物: | ACYCDuetUP1：GGATCTCGACGCTCTCCCT DuetUP2:TTGTACACGGCCGCATAATC |
3'測序引物: | DuetDOWN1:GATTAGCGGCCGTGTACAA T7-ter:TGCTAGTTATTGCTCAGCGG |
備注: | 同時表達兩個外源蛋白 |
■ 質粒屬性
質粒宿主: | 大腸桿菌 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 多框空載
|
原核抗性: | Kan |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pCOLADuet-1 is designed for the coexpression of two target genes from a single plasmid. The vector encodes two multiple cloning sites (MCS) each of which is preceded by a T7 promoter, lac operator, and ribosome binding site (rbs). MCS-1 encodes the six-amino acid His?Tag sequence for the creation of a N-terminal fusion and MCS2 encodes the 15 amino acid S?Tag? peptide after the last restriction site for the creation of a C-terminal fusion if desired. Genes inserted into MCS-1 can be sequenced using the ACYCDuetUP1 Primer and DuetDOWN1 Primer. Genes inserted into MCS-2 can be sequenced using the DuetUP2 Primer and T7 Terminator Primer. The vector has the COLA replicon from ColA(1) and the kanamycin resistance gene. This vector can be transformed into the same cell with plasmids containing compatible origins of replication and drug resistance genes for coexpression of up to 8 target genes.
質粒只保證關鍵序列正確，不保證表達效果。

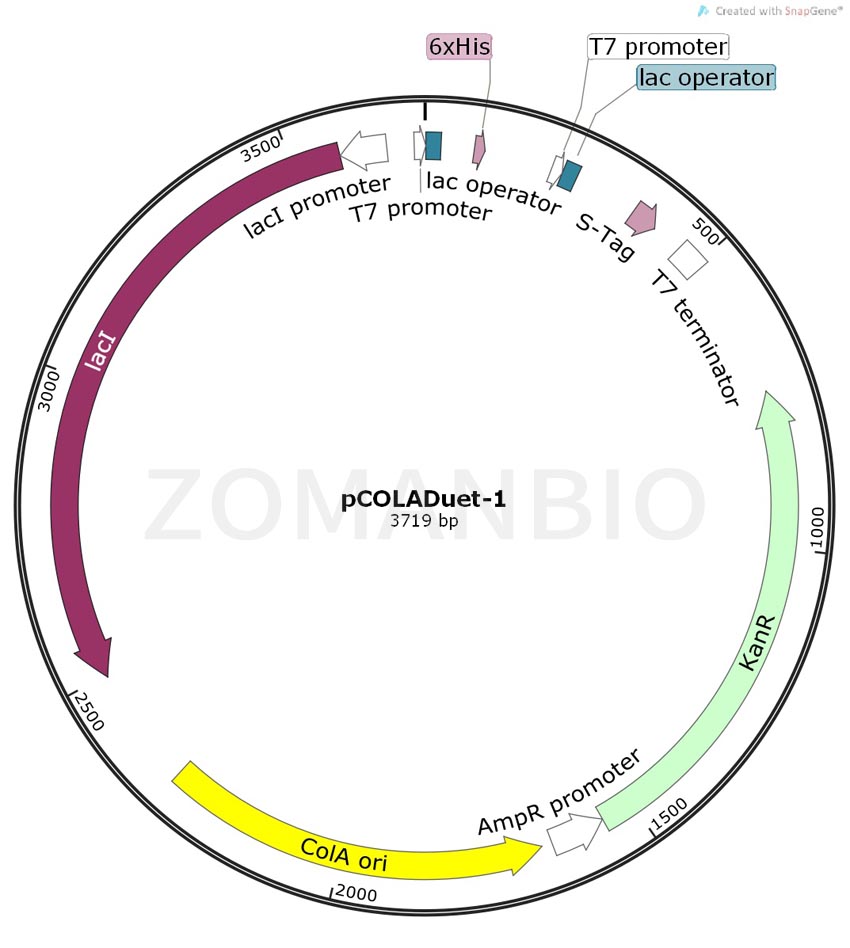

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK325pCOLADuet-1大腸雙表達質粒.txt
